Project Details

Generations @ Tannery: Project Details & Specifications

Generations @ Tannery is a proposed new 12-storey multi-user freehold B1 industrial development at 71 Tannery Lane (Geylang Planning Area), comprising 54 production units and 5 industrial canteens on Lot 03829V MK24.

Project Summary

Facilities & Provisions

• 4 passenger lifts + 2 service lifts (Kone, 2,500kg / 33-pax each)
• 51 car park lots (with provision for 10 EV lots), 2 accessible lots, 3 motorcycle & 52 bicycle lots
• 5 common loading/unloading bays for rigid vehicles up to 7.5m, plus car-accessible loading on levels 2–5
• Generous floor-to-floor heights: 6.125m (L1–L4), 4.375m (L5), 4.200m (L6–L8)
• Strong live loads up to 7.5–10.0 kN/m² and 3-phase electrical supply up to 200 Amp
• Private AC ledges for most production units; sprinkler, hydrant and fire-alarm systems throughout

Special & Premium Unit Types

Beyond standard production units, Generations @ Tannery offers towkay units, units with private lift access and dual-key configurations (with provision for two toilets) — flexible layouts that suit owner-occupiers and investors alike. See the floor plans and pricing guide for the full picture, or review the site plan for building facilities.

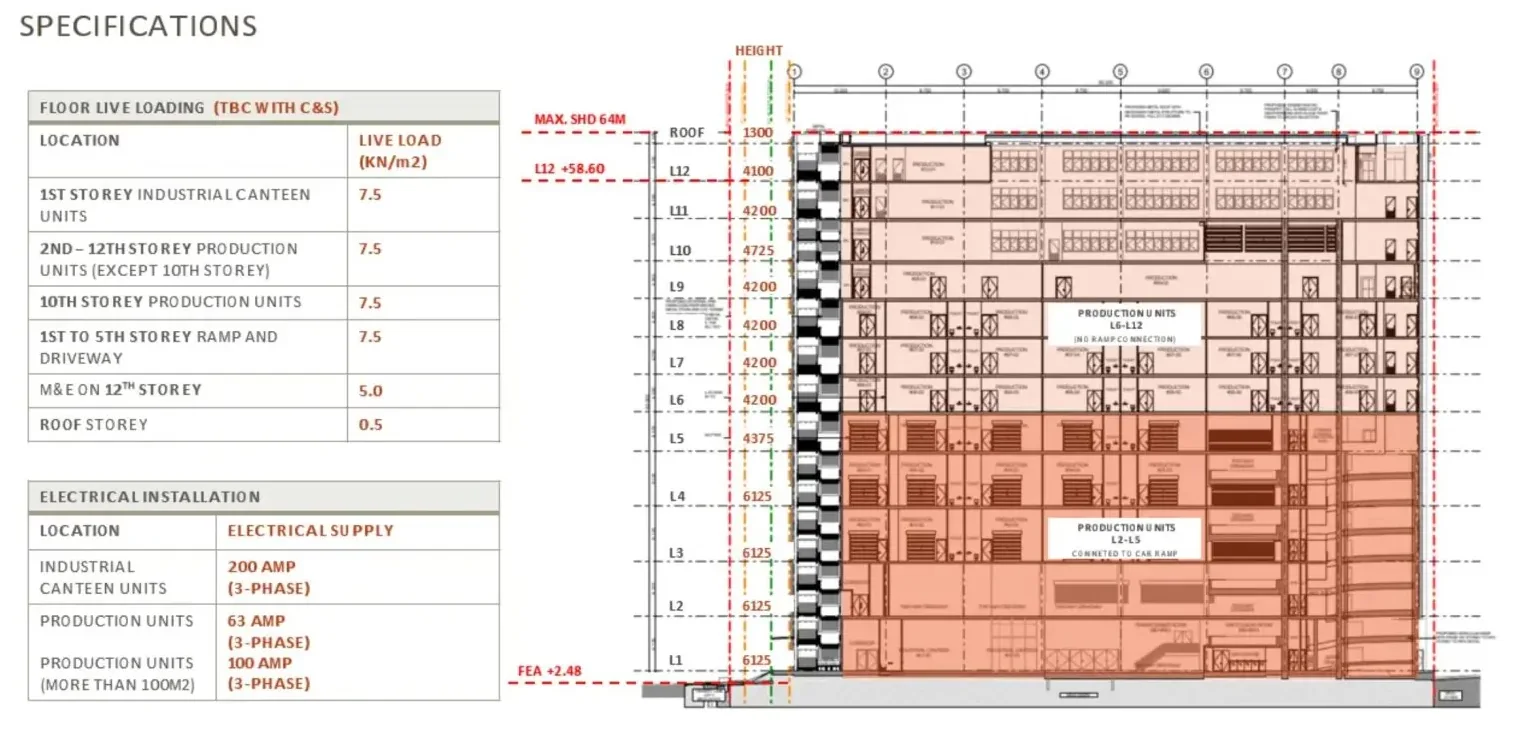

Building Cross-Section

The cross-section shows how the development stacks 12 storeys — with ramp-served production units on L2–L5 and lift-served units on L6–L12 — along with floor-to-floor heights, live loading and electrical supply by level.

Looking for the bigger picture? Return to the Generations @ Tannery homepage for the full overview, or jump to the developer profile.
